a. Mobile Antenna: N-870-A
|
Model |
Frequency |
Band Width |
Gain |
Max.power rating |
VSWR |
Connector |
Length |
Weight |
Material |
|
N-870-A |
118~136MHz |
18MHz |
4.0dB |
150W |
2 |
MP/UHF |
>1.3m |
1.1kg |
#631
stainless steel whip is springy
|

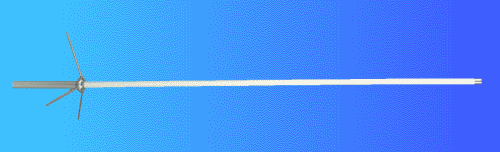

b. Base Antenna: HP-50-A
|
Model |
Frequency |
Band width |
Gain |
Max.power rating |
Impedance |
VSWR |
Rated wind velocity |
Mast diameter accepted |
Connector |
Polarization |
Lighting Protection |
Radiation Pattern |
Length |
Material |
|
HP-50-A |
118~136MHz |
18MHz |
4.2dB |
200W |
50Ohm |
2 |
60m/sec |
30-62φ |
MJ/UHF female |
Vertical |
DC Ground |
Omnidirection |
1.7m |
High-quality fiberglass outshell |
